MODEL 1478 DEFENDER® MISSING PLY™



DETECTOR TECHNOLOGY







  R.K.B. OPTO-ELECTRONICS, INC. web inspection on LinkedIn    R.K.B. OPTO-ELECTRONICS, INC. web inspection on You Tube



If you are a current user of our splice detection solutions,

whether you purchased directly with us or by way of OEM (i.e.,

sheeters, slitters, winders, etc.) you are eligible for preferred pricing

on additional units.  (Please note the serial number of the unit or units

you have if purchased via OEM).


"Where the Science of Quality Assurance is still an Art!"



TECHNICAL SPECIFICATIONS

Ancillary Systems:

Model 1280

Model 1290

Material Compatibility:

Papers
Plastics
Films
Other Non-metallic
Materials

Defects Types Detected:

Missing Plies

Minimum Detectable Defect:

0.8 mm Dia.

Maximum Web Speed:

1,828 m/min

Web Thickness:

0.25" Max.
(5.08 mm Max.)

Gap Width:

0.25" (6.35 mm)

Relay Alarm Outputs:

Dry Output Contact Closures:
Current Capacity at 110 VAC:
Current Capacity at 220 VAC:
Alarm On Period:

2 (Non-inductive)
0.1 Amp
0.05 Amp
1 Second

Electronic Alarm Output:

Pulse Outputs:
Voltage:
Direction:
Duration:

1
15 V (± 3 V)
Positive Going
10 ms

Material Color Range:

Unlimited

Dimensions:

6.0" X 7.5" X 4.37"
(15.24 cm X 19.05 cm x
11.1 cm)

Ambient Temperature:

40 to 160° F
(4 to 70° C)

Power:

110/220/240 VAC
50/60 Hz
Single Phase

Specifications are subject to change without notice.

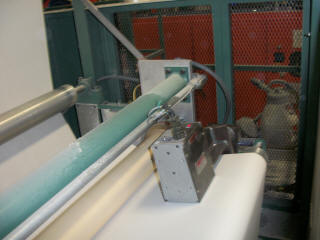

Reliability Equals Profit:

The reliability of our Model 1478 Defender® Missing Ply™ Detector Technology is unparalleled in the industry. Regardless of the application, machine or surroundings, our sensors will not quit. Our technology does not require operational intervention, adjustments, re-calibration and monitoring, unlike ultrasonics and photo electrics. Our technology is not designed as the “Quick Fix”, but is a committed investment that ensures cost effective quality assurance and control that translates into a much higher ROI and increased profitability.


Ensure Product Superiority:

For most multi web (ply) processes, conventional photocells, ultrasonics, resistive and inductive sensors face many difficulties in reliable detection. Issues such as basis weight variations all too often create either false signals, or in most cases, no signal at all.

Coaters
Extrusion
Laminators
Rotogravure
Slitters
UV Flexo Press
Embossers

Many conventional approaches use two, three and even more sensors in an attempt to achieve what “ONE” Model 1478 Defender® Missing Ply™ Detector Technology provides. While false signals are bothersome, the absences of a signal is damaging and can cost tens of thousands of dollars in erratic machine performance, product quality, customer complaints, and damage to sensitive components.



Simple, Quick and Effective:

Easy to set up and operate, and harmonious with logic systems and programmable controllers, the Model 1478 Defender® Missing Ply™ Detector Technology can be easily integrated on any application that calls for the detection of missing plies, as well as splices, metal chips and web breaks. Modular in design, our missing ply detector requires no operational intervention complicated setup procedures or constant tweaking.


Unaffected by Conditions:

Unaffected by web width, grade chances, number of webs or plies, material color, machine speed, and printed surfaces, our missing ply detection technology is truly plug and play. Maintenance free; you will save time and money since our missing ply detection technology is self-calibrating to any process for which the sensor is applied too. Available as an all in one unit or custom oriented to the application, the standard for missing ply detection is clear; the standard is the Model 1478 Defender® Missing Ply™ Detector Technology. Both a signal contact closure and a signal digital pulse output are included with each unit to facilitate interfacing to control production equipment such as:



Sheeter gates

coating head applicators

presses

laminators

treaters

audio/visual alarms

automatic marking systems.



Benefits Gained
Eliminates damage to embossing and perforating rolls
Eliminates roll wrap ups
Monitors the entire multi-web (ply) makeup at one convenient point as they leave the embossing station
One sensor, one job, multi webs – no need for complicated sensor arrangements, installations and integration.



Innovative Solution for Pioneering Industries:

This innovative sensing solution is applicable to industries that convert plies of nonconductive materials such as multi-ply films, multi-ply tissue, multi-ply fibrous materials, multi-ply laminates, PTFE-based ply material, multi-ply flexible material, multi-ply pressure-sensitive material, multi-ply paper sack, and multi-ply medical materials as well as many other consumer and industrial products. The Model 1478 Defender® Missing Ply™ Detector Technology uses state-of-the-art capacitive, non-contact sensing technologies. Immune to grade changes, material color, type of material and machine speed, the Model 1478 Defender® Missing Ply™ Detector Technology will never miss an absent ply, splice, or web break.


CONTACT R.K.B. TODAY:

Call us today @ 1-315-455-6636 to discuss your complete machine vision imaging application and to learn more about the industry's most diverse line of machine vision web inspection, hole detection, splice detection and control products.
