MODEL 3050 OPTOMIZER®



PINHOLE DETECTOR™ TECHNOLOGY









  R.K.B. OPTO-ELECTRONICS, INC. web inspection on LinkedIn    R.K.B. OPTO-ELECTRONICS, INC. web inspection on You Tube



Economically add pin hole detection with our

Model 3050 OPTOMIZER® Pinhole Detector™ Technology


"Where the Science of Quality Assurance is still an Art!"



Model 3050 OPTOMIZER® Pinhole Detection Technology

TECHNICAL SPECIFICATIONS

Software Specification: QAMS Software

Ancillary Systems

Model 1280

Model 1290

Model 1122

Defects Types Detected:

Defect Types

Minimum Detectable Defect:

0.00001 sq. mm

Maximum Web Speed:

3048 m/min.

Basis Weight Range:

Subject to Tests

Material Color Range:

Subject to Tests

Line Scan Cameras:

Type:
Lens Focal Length:
Field Of View (FOV):
Maximum Data Rate:
Pixel Resolution:



1024
25 mm
5.08 cm min
20-60 MHz
0.025 mm in CD

Material Color Range:

Unlimited

Illumination:

Sodium

Ambient Temperature:

40 to 160° F
(4 to 70° C)

Power:

120/220/240 VAC
50/60 Hz
Single Phase
2.5 - 5 KW

Specifications are subject to change without notice.

Model 3050 OPTOMIZER® Pinhole Detection TechnologyMonitor Pinhole Defects:

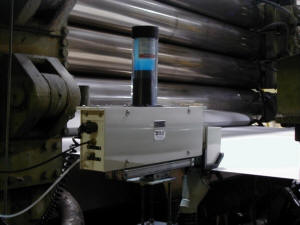

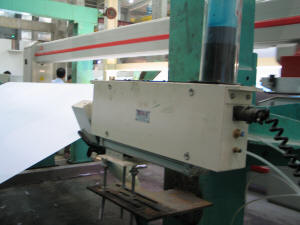

Our Model 3050 OPTOMIZER® Pinhole Detector™ Technology makes it possible to economically add pinhole detection capabilities to your web manufacturing processes. The system combines a high speed CCD Line Scan Sensor with state-of-the-art signal processing technologies to achieve very high resolution detection of pinhole defects. Depending on web speed, defects as small as 0.00001 sq. mm can be detected. The sensor housing of the system is designed for mounting to existing process control equipment, such as a basis weight measurement sensor, that is capable of providing motion in the cross machine direction. Mounted to such equipment, the Model 3050 can provide continuous sampling inspection of the web material.


Analyze the Process:

Our QAMS® Quality Assurance Management System software can be provided with each system to provide charting, footage tracking, product code identification, material and process traceability, real time and historical reporting, on-line diagnostics, and additional control and analysis functions:



Model 3050 OPTOMIZER® Pinhole Detection Technology

Analysis and Charting
Footage Tracking
Product Code Identification
Material and Process Traceability
Real Time and Historical Reporting
Status and Parameter Displays
On-Line Diagnostics



Positively Mark Edge Defects:

Our Model 1280 Guardian® Multicolor Edge Marking™ Technology can be combined with the Model 3060 OPTOMIZER® Edge Crack Detector™ to provide visible edge marks that positively identify the locations of edge cracks within each roll. These marks can then be detected by our Model 1290 AutoDetect® Control System™ that will monitor rolls on subsequent processing equipment for the edge marks and initiate a "STOP" signal to facilitate removal of the defect by operational staff by cutting it out, patching or splicing.  The Model 1290 can be installed on any process such as:



Model 3050 OPTOMIZER® Pinhole Detection TechnologyModel 3050 OPTOMIZER® Pinhole Detection Technology



Sheeters Model 3050 OPTOMIZER® Pinhole Detection Technology
Coaters
Supercalenders
Extrusion Laminators
Roto Presses
Slitters
Rewinders



These marks can also be detected visually as concentric circles on the outside edge of the roll for manual sorting or grading operations.



Contact R.K.B. Today:

Call us today @ 1-315-455-6636 to discuss your complete machine vision imaging application and to learn more about the industry's most diverse line of machine vision web inspection, hole detection, splice detection and control products.
