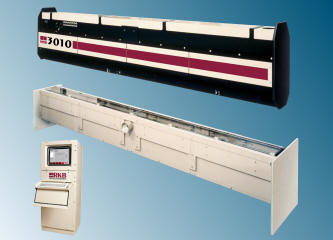

HD3010 HRMV-WIS

TECHNOLOGY

Where the Science of Quality Assurance is still an Art!

Save time and money with our high resolution OPTOMIZER® HRMV-WIS technology. Process diverse materials, achieve high

resolution and provide fully qualified products to your customers.


TECHNICAL SPECIFICATIONS
Defects Types Detected:	Blisters	Creases	Dirt
	Pinholes	Scale	Holes
	Spots	Fish Eyes	Oil
	Linting	Lumps	Knots
	Edge Cracks	Indentations	Wrinkles
	Bugs	Tearouts	Splices
Minimum Detectable Defect:	0.00001 sq. mm.
Maximum Web Speed:	To 10,000 ft/min. (3,048 m/min.)
Basis Weight Range:	Subject to Tests
Material Color Range:	Subject to Tests
Line Scan Cameras: Type: Lens Focal Length: Field Of View (FOV): Maximum Data Rate: Pixel Resolution:	1024/2048 25 mm 0.1" (2.54 mm) Min. 40" (101.6 cm) Max up to 60 MHz 0.0001" (0.0025 mm) in CD
Material Color Range:	Unlimited
Illumination:	Proprietary
Ambient Temperature:	40 to 160° F (4 to 70° C)
Power:	120/220/240 VAC 50/60 Hz Single Phase 2.5 - 5 KW Dependent On Width Alternative Power Requirements Per Quotation
Specifications are subject to change without notice.

Conserve Time and Money: The OPTOMIZER MV-WIS is a CCD linear array machine vision imaging technology that provides high speed inspection of subtle autonomous defects commonly found in various web based material manufacturing. Our machine vision technology will detect, classify and analyze many types of defects that can adversely affect product quality and damage fragile components in various supercalenders, coating, printing, embossing, laminating and similar conversion processes. This machine vision technology will save your company tens of thousands of dollars per annum due to loses, complaints, re-manufacturing, machine downtime and other production aspects if unchecked.

Process Diverse Materials: Our CCD based machine vision technology is designed to provide accurate, consistent, and reliable high-speed, on-line inspection for a wide variety of web materials. Compatible material types include paper, paperboard, Siliconised coated, poly coated, adhesive coated, cotton fiber bond, printing and writing, de-inked recycled, films, foils, metals, plastics, rubber, nonwoven, specialties grades, magnetic media and many other types of web based processed materials.

Realize High Resolution: An array of high-speed 1024 Digital Charge Coupled Device (CCD) line scan cameras, combined with our proprietary defect signal processing technologies, makes it a reality to achieve very high resolution with this system. Defects are detected, classified, categorized and located in real time under real world conditions. Since we use 1024 pixel formats, subtle defects not obtainable by other slower scanning technologies are now visible at costs competitive with larger brand name company products.

Provide Fully Qualified Products: Each machine vision solution is designed to span the entire web width for 100 percent inspection of the web material. Now you can guarantee that your products are fully qualified prior to subsequent processing or shipment to customers. Our Quality Assurance Management System (QAMS) software is included with each system to provide complete defect data collection, analysis, reporting, setup, and diagnostic capabilities. Also included with each machine vision solution is our multicolor spray marking or reject gate control technology for completely unattended operation of your production equipment.

Call R.K.B: Call us today to discuss your machine vision imaging application and to learn more about the industry's most diverse line of machine vision web inspection, hole detection, splice detection and control products.

AFFILIATE SITES

HD3020

Coating Streak/Scratch

R.K.B Joins Forces

with the best and the brightest

in process automation, analysis

and control solutions.

MISSION STATEMENT

R.K.B. OPTO-ELECTRONICS is a designer and manufacturer of high-speed machine vision web inspection technologies and related products. We are committed to web based material manufacturers, converters, customers and our industry that depend on us to guarantee that product superiority is maintained at the highest possible level. We are dedicated to increasing customer satisfaction, continuously improving our products and services, and providing opportunities for our employees to achieve their maximum potential.
