MODEL 3040 OPTOMIZER® MACHINE VISION



WEB INSPECTION TECHNOLOGY







  R.K.B. OPTO-ELECTRONICS, INC. web inspection on LinkedIn    R.K.B. OPTO-ELECTRONICS, INC. web inspection on You Tube



Add high-speed inspection with our

Model 3040 OPTOMIZER® Machine Vision technology.

Detect and categorize defects, process diverse materials and ensure delivered quality


"Where the Science of Quality Assurance is still an Art!"

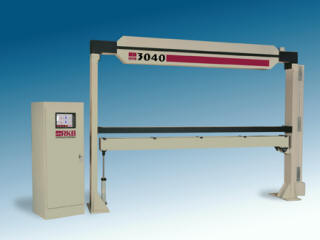

Model 3040 OPTOMIZER® Machine Vision Web Inspection Technology

TECHNICAL SPECIFICATIONS

Software Specification: QAMS Software

Ancillary Systems

Model 1280

Model 1290

Model 3050

Model 3060

Model 4010

Defects Types Detected:

Defect Types

Minimum Detectable Defect:

0.25mm diameter holes
0.5mm diameter spots

Maximum Web Speed:

3048 m/min

Basis Weight Range:

Subject to Tests

Material Color Range:

Subject to Tests

Line Scan Cameras:

Type:
Lens Focal Length:
Field Of View (FOV):
Maximum Data Rate:
Pixel Resolution:



2048
50 mm
25.4 cm to 101.6 cm
 up to 40 MHz
down to 0.102 mm CD

Material Color Range:

Unlimited

Illumination:

Proprietary

Ambient Temperature:

40 to 160° F
(4 to 70° C)

Power:

120/220/240 VAC
50/60 Hz
Single Phase

Specifications are subject to change without notice.

Monitor Pinhole Defects:

Model 3040 OPTOMIZER® Machine Vision technology makes it possible to add economical, high speed, inspection capabilities to existing web manufacturing operations. These systems detect and categorize common types of defects that can adversely affect product quality and damage fragile mechanical components in production equipment. Our HD3040 MV-WIS can help your company reduce overall production costs through reductions in machine downtime, elimination of costly repairs, and fewer customer complaints.



Detect and Categorize Defects:

An array of high speed 2048 CCD Line Scan sensors, combined with our proprietary signal processing technologies, makes it possible to achieve industry standard resolution with this system. Our QAMS® Quality Assurance Management System software can be provided with each system to provide complete data collection, analysis, reporting, setup, and diagnostic capabilities.



Model 3040 OPTOMIZER® Machine Vision Web Inspection Technology

Analysis and Charting
Footage Tracking
Product Code Identification
Material and Process Traceability
Real Time and Historical Reporting
Status and Parameter Displays
On-Line Diagnostics



Positively Mark Edge Defects:

Our Model 1280 Guardian® Multicolor Edge Marking™ Technology can be combined with the Model 3040 OPTOMIZER® Machine Vision technology to provide visible edge marks that positively identify the locations of edge cracks within each roll. These marks can then be detected by our Model 1290 AutoDetect® Control System™ that will monitor rolls on subsequent processing equipment for the edge marks and initiate a "STOP" signal to facilitate removal of the defect by operational staff by cutting it out, patching or splicing.  The Model 1290 can be installed on any process such as:



Model 3040 OPTOMIZER® Machine Vision Web Inspection TechnologyModel 3040 OPTOMIZER® Machine Vision Web Inspection Technology



Sheeters Model 3040 OPTOMIZER® Machine Vision Web Inspection Technology
Coaters
Supercalenders
Extrusion Laminators
Roto Presses
Slitters
Rewinders



These marks can also be detected visually as concentric circles on the outside edge of the roll for manual sorting or grading operations.



Process Diverse Materials:

Our machine vision web inspection technology provides accurate, consistent, and reliable on-line inspection for a wide variety of web materials including cotton fiber bond, embossed; text; and specialty papers, de-inked recycled papers, films, gloss and matt coated offset and rotogravure papers, lightweight coated groundwood papers, magnetic media, metals and foils, plastics, and rubber.



Model 3040 OPTOMIZER® Machine Vision Web Inspection Technology Model 3040 OPTOMIZER® Machine Vision Web Inspection Technology Model 3040 OPTOMIZER® Machine Vision Web Inspection Technology Model 3040 OPTOMIZER® Machine Vision Web Inspection Technology Model 3040 OPTOMIZER® Machine Vision Web Inspection Technology
Steel Products Medical Products Paper Products Film Products Laminate Prtoducts



Contact R.K.B. Today:

Call us today @ 1-315-455-6636 to discuss your complete machine vision imaging application and to learn more about the industry's most diverse line of machine vision web inspection, hole detection, splice detection and control products.
